MIX A - Projector Correction


Projector Correction (If Needed)

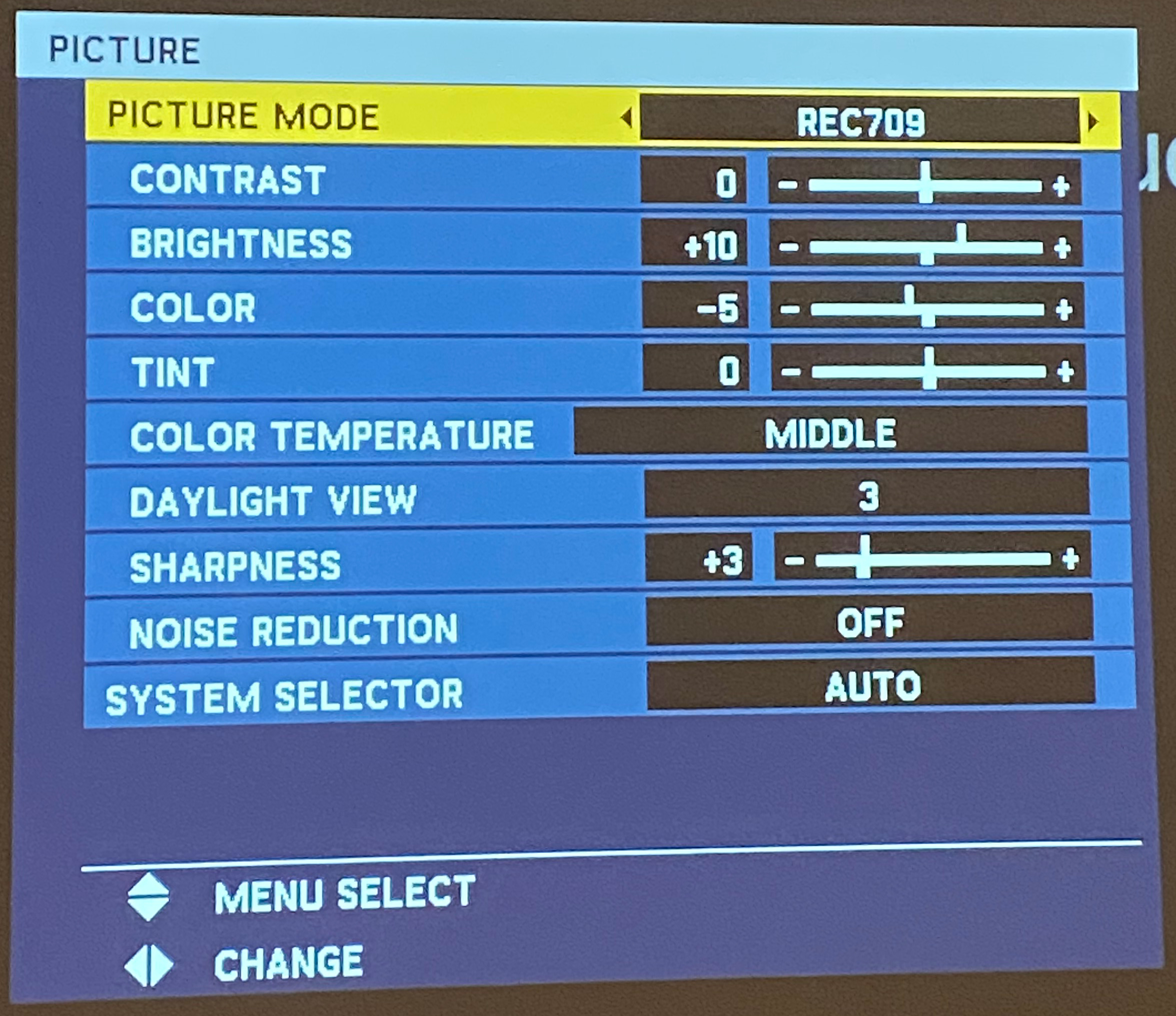

1. Open the projector's Menu, then Picture
Set the Picture Mode to Rec 709, then adjust the Brightness, Color, Color Temperature, and Sharpness accordingly (for the Mac Pro, Bruno found that +10 Brightness, -5 Color, Middle Color Temperature, and +3 Sharpness is ideal)

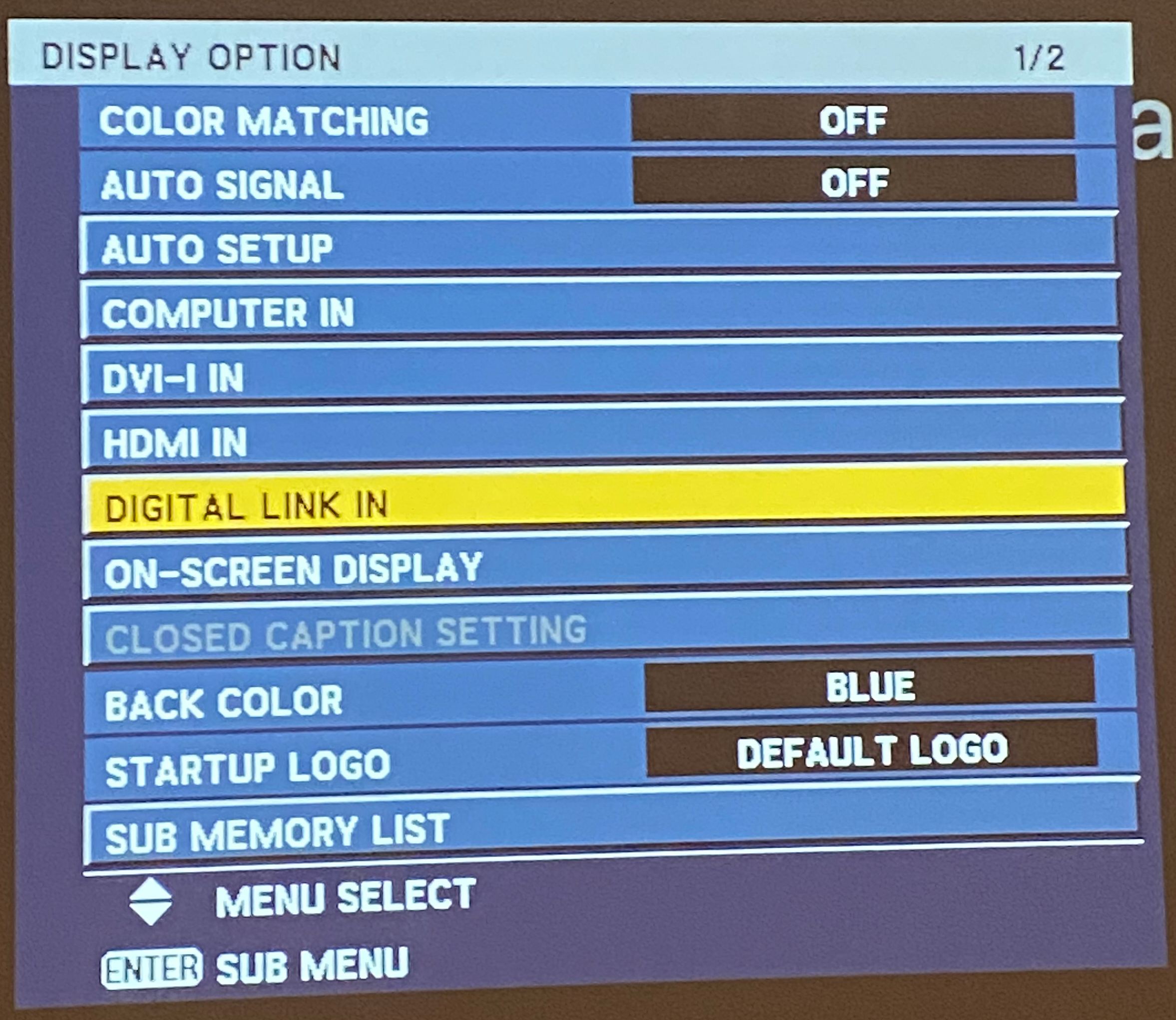

2. Go back to the main menu, then select Display Options. In the Display Options menu, select Digital Link On.

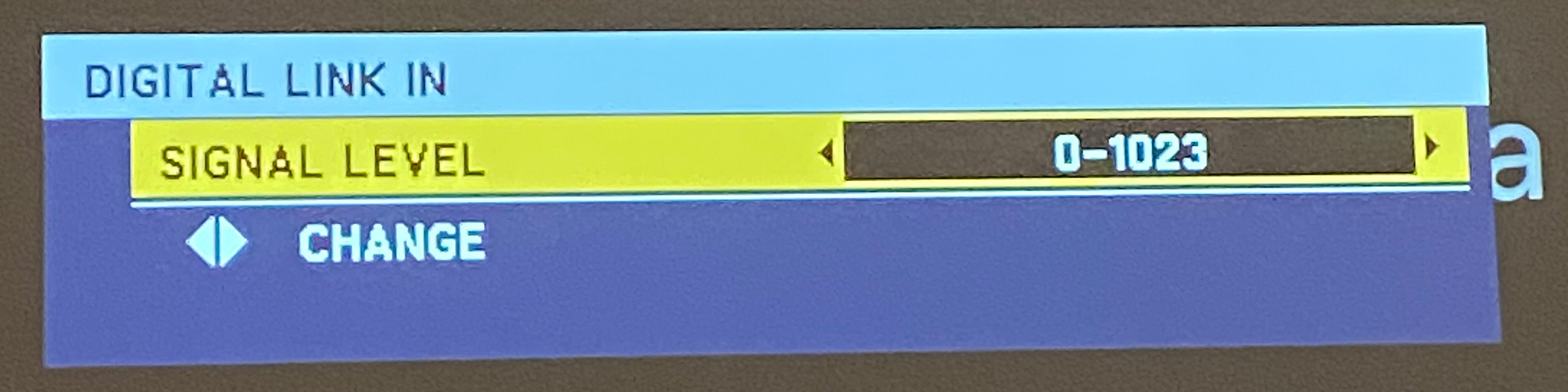

In the Digital Link menu, set the Signal Level to 0-1023


If you are still having issues, please contact either postproduction@emerson.edu for a Post Manager
