How to Setup the PEL Projector

Using the Computer at the Teacher Station

• Power on the projector with the white remote. Two of the lights on the projector should start blinking green. After pressing the power button, give the projector a minute or two to power on. You should eventually see a Blue screen with Panasonic on the screen.

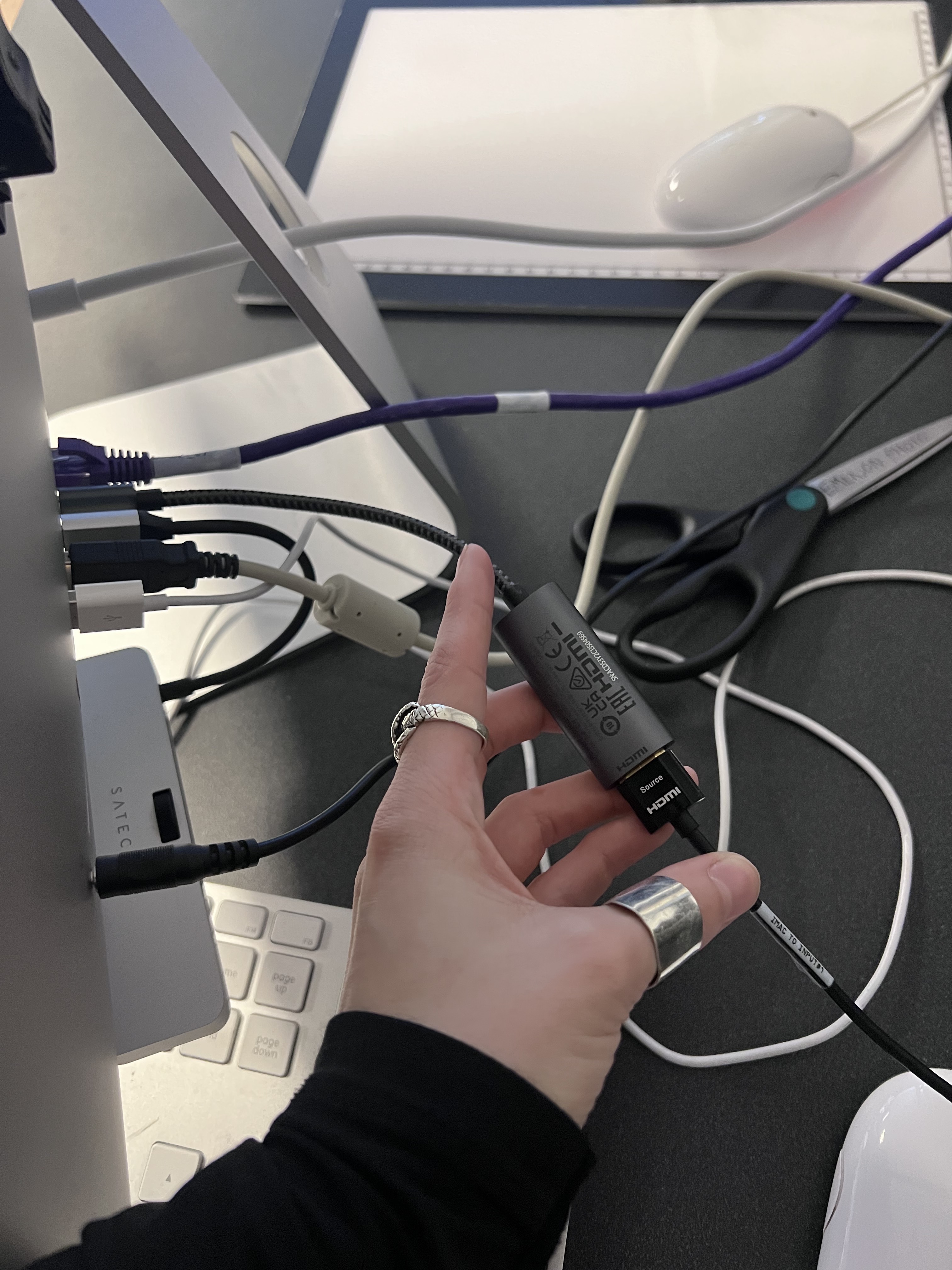

• Once it's powered on, make sure the HDMI cable is connected to the TS Computer. (Image below)

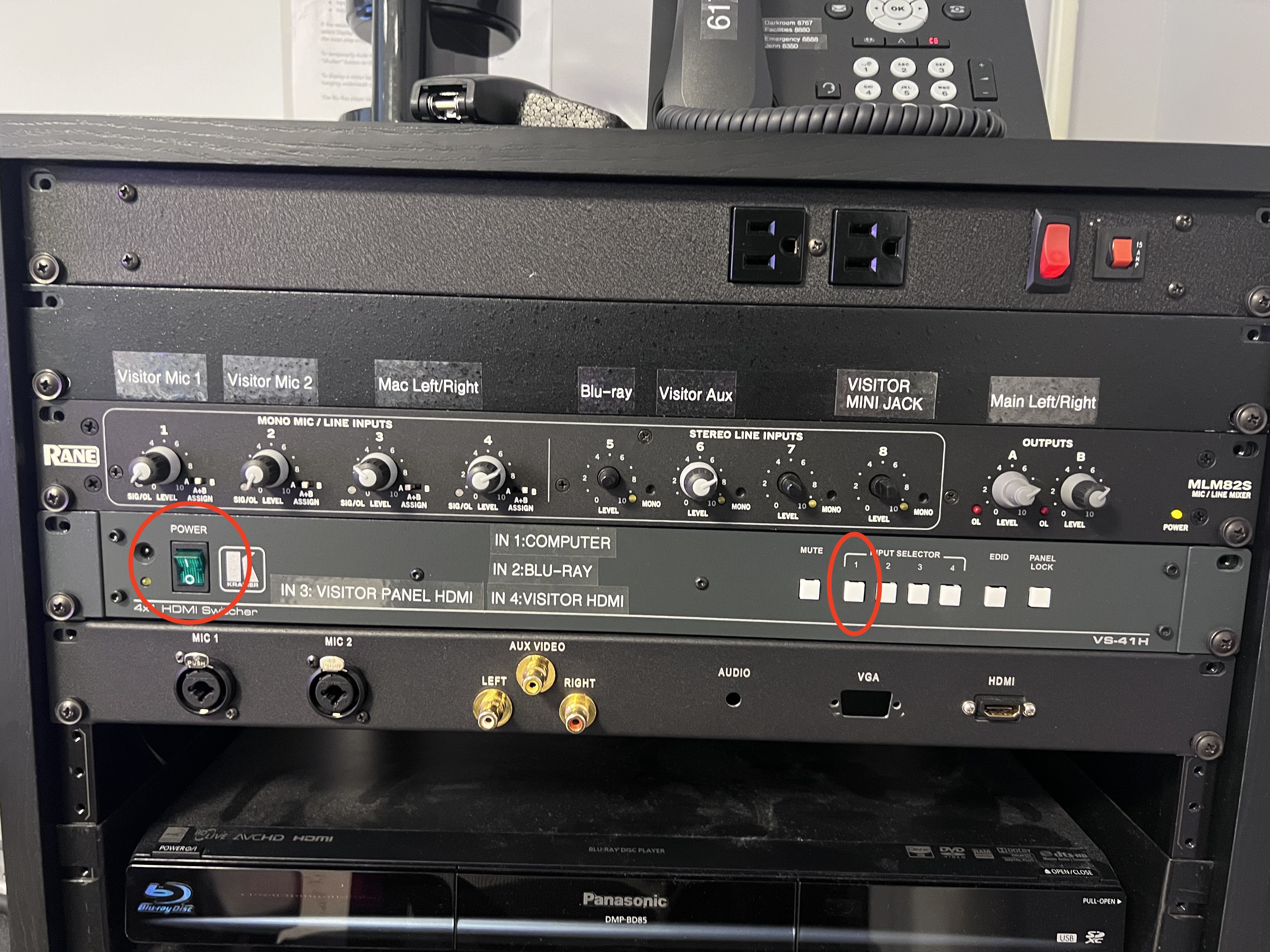

• Make sure the HDMI Switcher is powered on and that you have selected HDMI Input 1

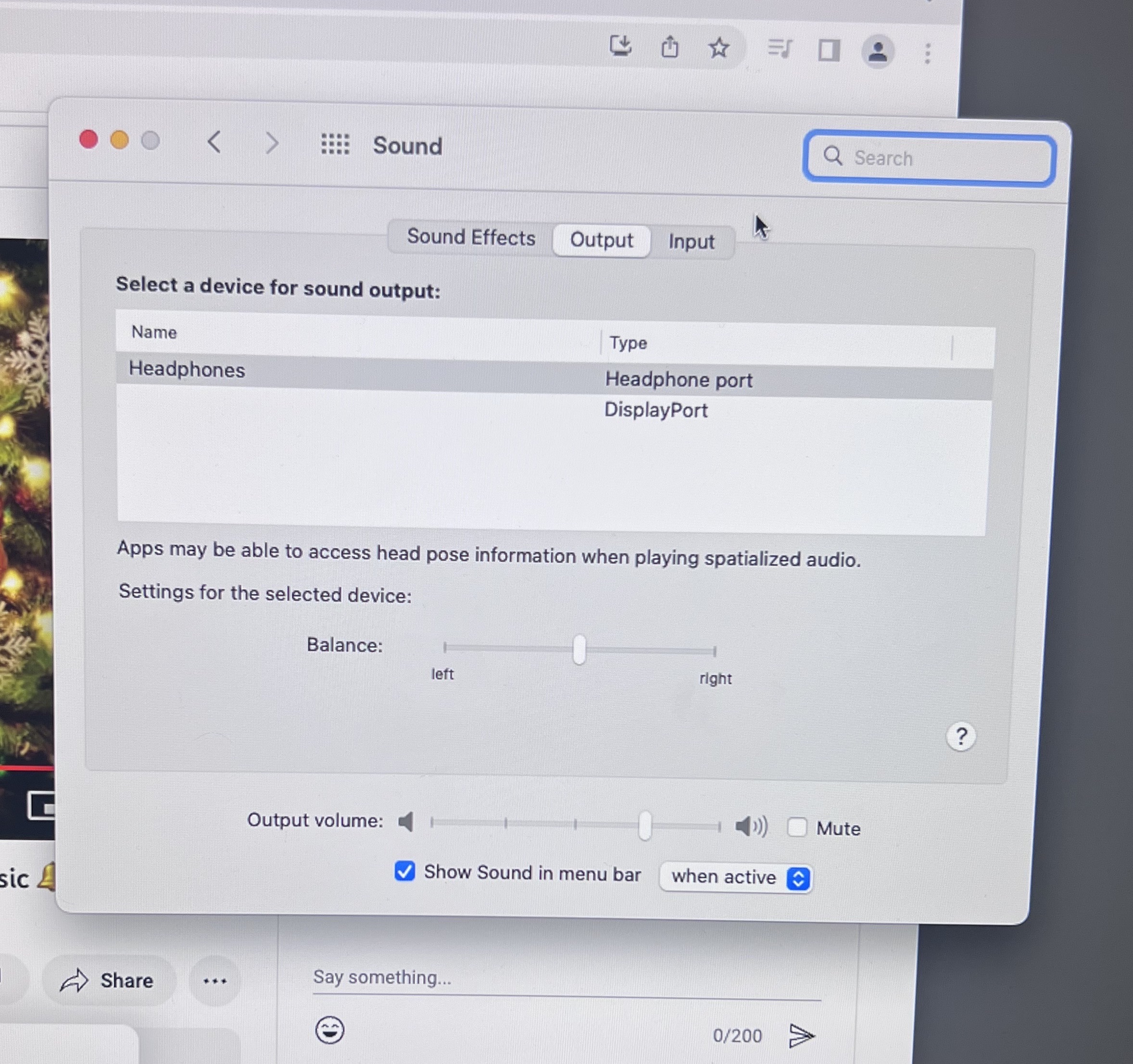

• If you are having issues with your audio, check that you have the correct output. Go to System Preferences→Sound→Output and select Headphone Port

Using a Personal Laptop

• Power on the project with the white remote. Two of the lights on the projector should start blinking green. After pressing the power button, give the projector a minute or two to power on. You should eventually see a Blue screen with Panasonic on the screen.

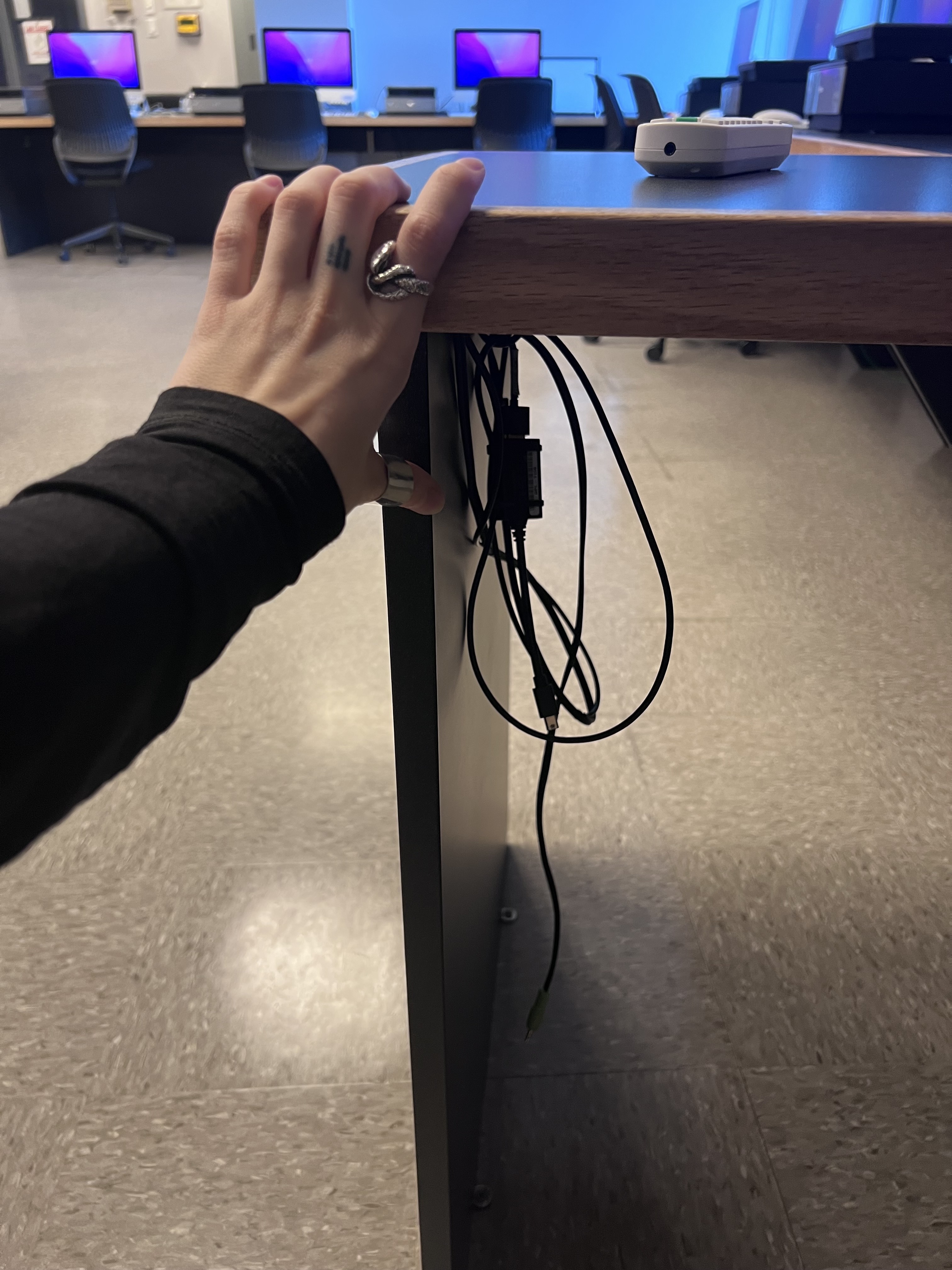

• Use the HDMI cable underneath the desk. (You will likely need an adaptor for a newer Apple laptop.)

• If you need audio, use the headphone jack to plug into your laptop.
• On the HDMI Switcher, make sure it is powered on and that you have selected HDMI Input 4.

• If you are having issues with audio, you need to check your output. To do this open System Preferences→Sound→Output and make sure your output is set to External Headphones, Headphone port.

If you encounter any other issues, please feel free to ask a student employee for assistance or to contact me by coming to 501E, calling 617-824-8768 or emailing postproduction@emerson.edu
