Overview

The Arriflex 16SR (Super 16mm) is an analog motion picture camera. It takes up to 400' of Super 16mm film. It does not require a crank to roll but is battery powered.

This camera allows you to create a super 16mm project with a smooth and quiet motor. Perfect for sync sound! For better results, add a camera barney to help sound proof it further.

Required Items:

• Arriflex 16SR uses spools of Super 16mm film on 2" plastic cores.
• Film II Battery Kit

Table of Contents

• EDC Arriflex 16SR (Super 16mm 16:9) Component Guide
• Quick Start Guide
• Troubleshooting
• Compatible EDC Accessories
• Tips & Tricks

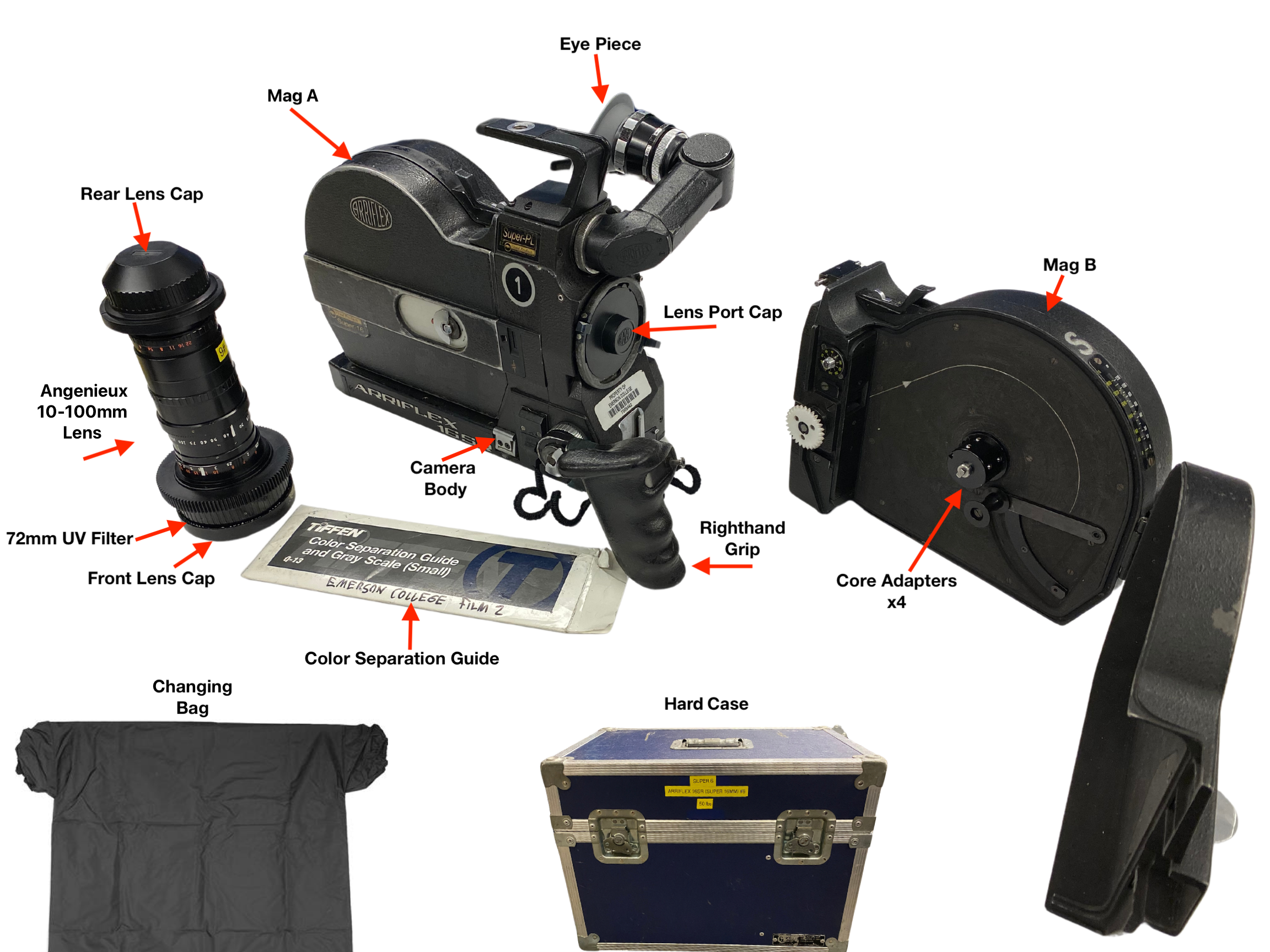

EDC Bolex H-16 REX 3/4/5 Component Guide

Quick Start Guide

• First Steps
• Loading the film
• Operations
• Unloading the film

First Steps

• Attaching the PL Lens

• Using the Viewfinder
  • To see through the lens, you must push your eye/face into the eye cup with pressure to activate the viewfinder.
• Adjusting Diopter
  • Slightly unscrew the shiny silver gear.
  • Adjust the black and silver gear while looking into the viewfinder.
  • Once the lines & text are in focus to your eye, lock the shiny silver gear.

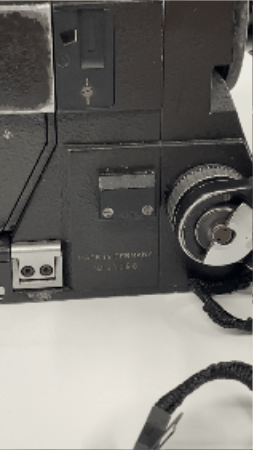

• Attaching the Hand Grip

Back to Quick Start Overview

Loading the Film

Practice in the light with a dummy load.

When Loading REAL film, LOAD IN A CHANGING BAG!

Operations

Back to Quick Start Overview

Unloading the Film

Always unload your film in a changing bag!

Remove any watch/smart band that lights up!

• Gather Supplies
  • Black Plastic Bag (comes with your 400' film can)
  • 400' Film Can
  • Paper tape.
  • Gaff Tape
  • Changing Bag
• Put all your supplies & your mag inside the changing bag.
• Zipper both zippers
• Put your hands in.
• Open the take up side of the Mag.
• Tear a small piece of paper tape.
• Find the end of the film & tape it to the roll.
• Carefully pull the pressure roller away from the film roll.
• Using both hands grab two opposite sides of the roll and lift up until it is released. There will be some resistance.
• Check the center of the film roll's core to make sure the core adapter did not come out as well.
  • If the core adapter was also released, push it out.
• Put your film in the black plastic bag and wrap it over itself.
• Place the black plastic bag in the film can.
• Tape the film can with the gaff tape by wrapping a piece along the side of the can.
• Remove from Changing Bag
• Label film can with your Name & Professor's name.

Back to Quick Start Overview

Back to Top

Troubleshooting

Q: The film is making a crunching noise when rolling.

A: The film is misaligned and the camera sprockets are creating new holes in the film. You will need to reload the film.

Q: The film spooled out while I was unloading it in the changing bag!

A: Continue to put it in the can as neatly as possible. Write a note on the can to the lab saying it is not spooled.

Q: The battery is hooked up to the camera but the camera isn't rolling.

A: Make sure your battery is fully charged.

OR
There may be an issue with the camera or cable. Please contact the EDC for additional support.

Back to Top

Compatible EDC Accessories

Access is dependent on class equipment allocations & availability

• Miller CXV10 Tripod
• Film II Mattebox
• Film II Battery Kit
• Changing Bags/Tents
• Camera Barney

Back to Top

Tips & Tricks

• Always load and unload your magazine in a changing bag!
• Remember to remove any watches/smart bands that emit light before loading/unloading.
• Listen carefully when filming. If anything sounds crunchy or "off," stop rolling and investigate.
• These are older cameras, please be gentle!
