EDC Gear Guides: 2x1 & 1x1 Aladdin RGB Panel Light

Overview

The 2x1 & 1x1 Aladdin kits are lightweight RGB panel lights. They work great in small and large spaces. Perfect for effects, these lights connect to the ALLINAPP on your phone and you can fully customize your set up.

They can run off battery or wall power, making them a versatile light for any set!

Table of Contents

• EDC Aladdin Component Guide
• Quick Start Guide
• Troubleshooting
• Compatible EDC Accessories
• Tips & Tricks

EDC Aladdin Component Guide

1x1

2x1

Quick Start Guide

You will need wall power OR a V-Mount battery with a D-Tap port.*
And a stand with a baby pin* & shot/sandbag*

*Vended Separately

• First Steps
• Powering On
• Operations

First Steps

• Installing the X-Bend Frame & Frame Ball Head Adapter

  • Flip the panel over to the black side.
  • Open the frame up into an X.
  • Stick the ends of the frame into the corner lips of the light panel.
    • It will bend - this is normal!
  • On the Frame Ball Head Adapter, loosen and remove the safety cap.
  • Stick the exposed threading into the center hole on the top of the frame.
  • Secure by threading the safety cap on the other side of the hole onto the adapter thread.
• Mounting to a Stand
  • Loosen the stand adapter baby pin receiver tie down.
  • Place the receiver onto the baby pin and tighten the tie-down.
  • Use the center tie down on the adapter to adjust the panel's angle.

Back to Quick Start Guide

Powering On

• Using Wall Power
  • Connect the orange connector on the light panel to the 9.8" header cable.
  • Connect the other side of the header cable to the orange connector on the power supply.
  • Connect the AC Cable to the power supply.
  • Plug into the wall.
• Using a V-mount Battery with D-Tap port
  • Connect the orange connector on the light panel to the 9.8" header cable.
  • Connect the other side of the header cable to the orange connector D-Tap Power cable.
  • Plug the D-Tap end into the battery's D-Tap Port.
• To Turn On
  • Press the + button on the control box on the back of the light until it is bright.
• To Turn off
  • Press the - button on the control box on the back of the light until it dims out.

Back to Quick Start Guide

Operations

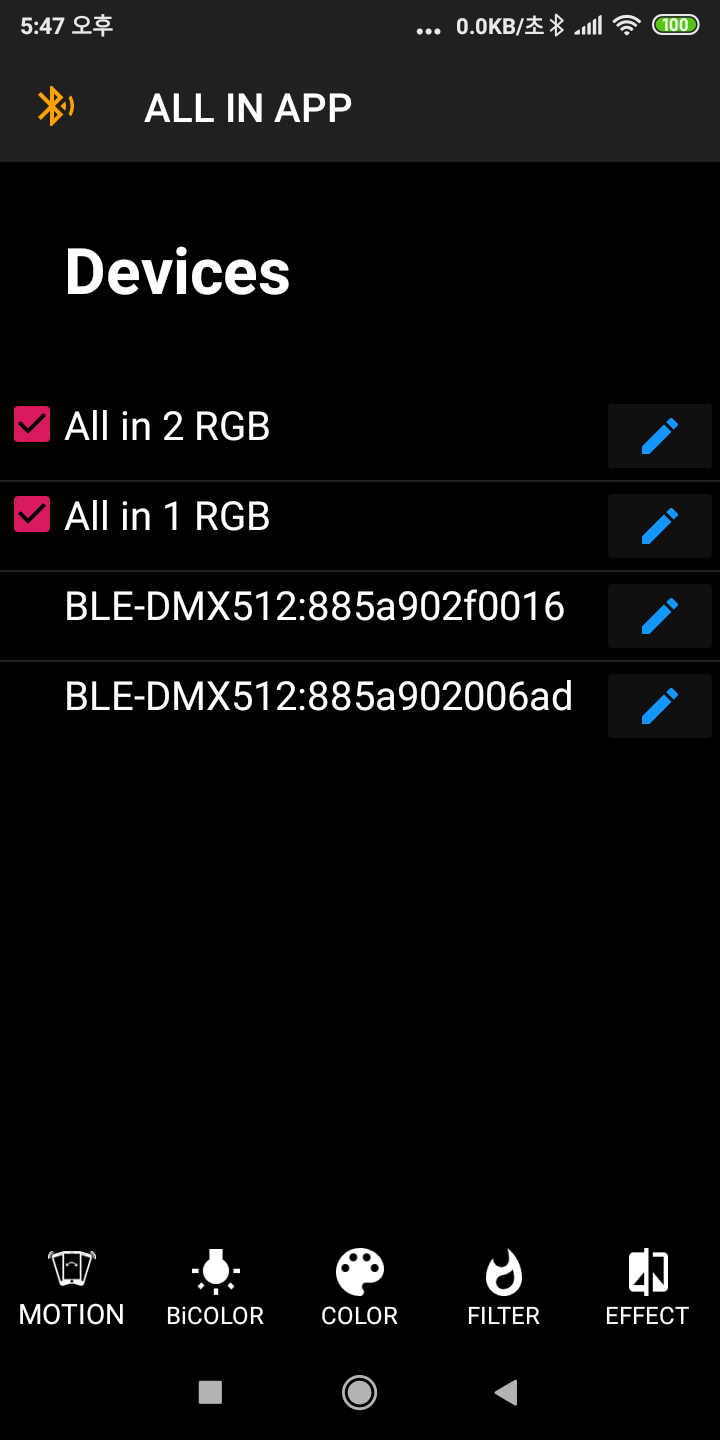

• Connecting to the ALLINAPP
  • Download the free ALLINAPP on your phone's app store.

  • Make sure your light is powered on and open the app.
  • Connect to the available device by selecting it

  • Use the menu at the bottom to select and edit your panel's function.


Back to Quick Start Guide

Back to Top

Troubleshooting

Q: Can I bend the light?
A: No- do not physically bend or shape the light.

Q: My frame is not the X-Bend Frame.

A: Some of our kits have the plastic frame. Attach the light into the frame with the Velcro on the frame. These frames also do not have a safety cap as the ball adapter is permanently attached to the frame.

Q: There a some colors that are not lighting up on the diodes.

A: The light needs to be repaired - please contact the EDC for further assistance.

Back to Top

Compatible EDC Accessories

Access is dependent on class equipment allocations & availability

• Husky Baby Stand
• C-Stands
• Combo Stands
• Shotbags & Sandbags
• Extension Cords
• V-Mount Batteries

Back to Top

Tips & Tricks

• Do not tape the Aladdin to any surface
• This light can still get hot!
• Do not put tape on the diodes!
• Use a C-Stand Strong Arm set up to create overhead lighting!

Back to Top
