Overview
The Aputure 1200D is 1200W Daylight LED that is as bright as an 1.2 HMI light. This light packs a bright punch while only using 15 Amps. It can be used on 20 amp circuits in studios and on location.
It has additional effects and can really light up a room!
Table of Contents
EDC Aputure 1200D Component Guide
1200D Quick Start Guide
You will need a 2-rise or 3-rise combo stand & 25lb sandbag.
(Vended Separately)
First Steps
- Set up your chosen stand with a 25 lb sand bag.
- Line up the stand adapter with junior receiver and lower it into the hole. Tighten the tie-down on the stand to secure the light.

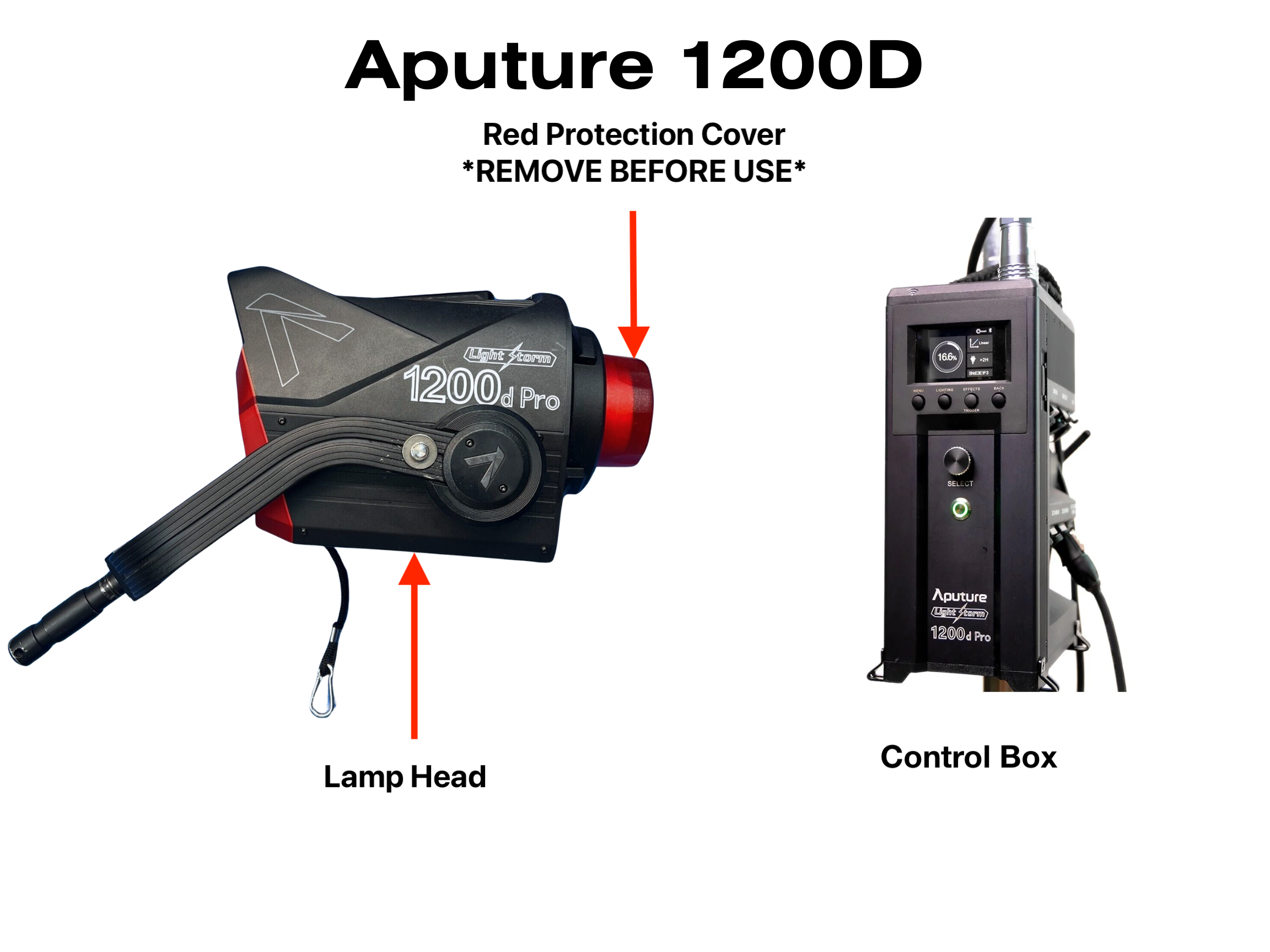

Always remove the Red Protection Cover to powering on.

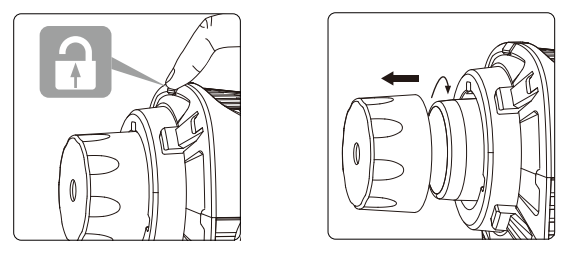

- Pull back the silver tab, located above the red cover, rotate the cover clockwise, then lift the cover out.
- Always reattach the Red Protection Cover when packing away. (Let the light cool prior to re-installing).
- To reattach the cover, insert it into the mount and rotate counterclockwise until it clicks
Adding Hyper Reflector

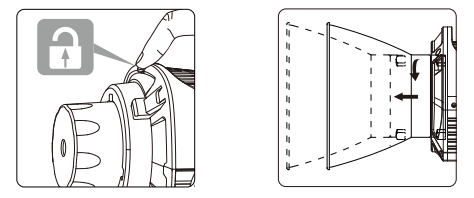

- To attach the reflector, press the release button, insert the reflector into the Bowens
mount, and rotate it counter clockwise - To remove the reflector, pull back the release button and rotate the reflector clockwise.
Powering On/Off

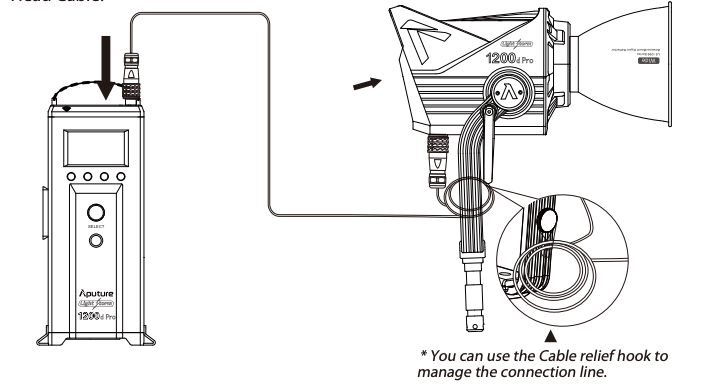

- Connect the Lamp head to the Control Box by using the 7-pin Header Cable

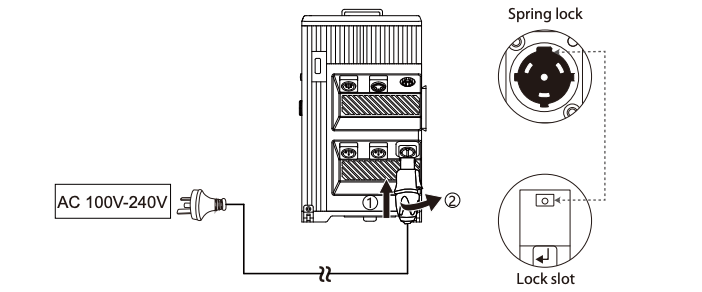

- Plug the powerCON cable into the AC power port on the side of the control box.
- Twist clockwise to secure.
- Plug AC cable into a wall outlet.

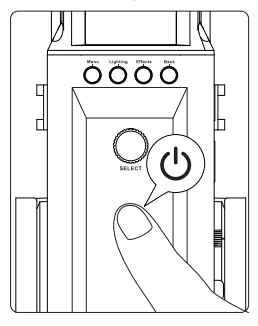

- Power on by pressing the ⏻ to turn on/off
Let the light cool before breaking down.
- Turn the light off at the control box.
- Unplug the AC cable from the wall.
- Disconnect the powerCON cable by pulling back on the yellow release tab on the
cable connector, and rotate the connector counterclockwise. - Disconnect the head cable from the control box and then the lamp head.
- Disconnect the Head Cable by pulling up on the collar on the connector. This will disengage its locking mechanism.
- Reattach Red Protection Cover.
- To reattach the cover, insert it into the Bowens mount and rotate counterclockwise.
Lightning Clamp

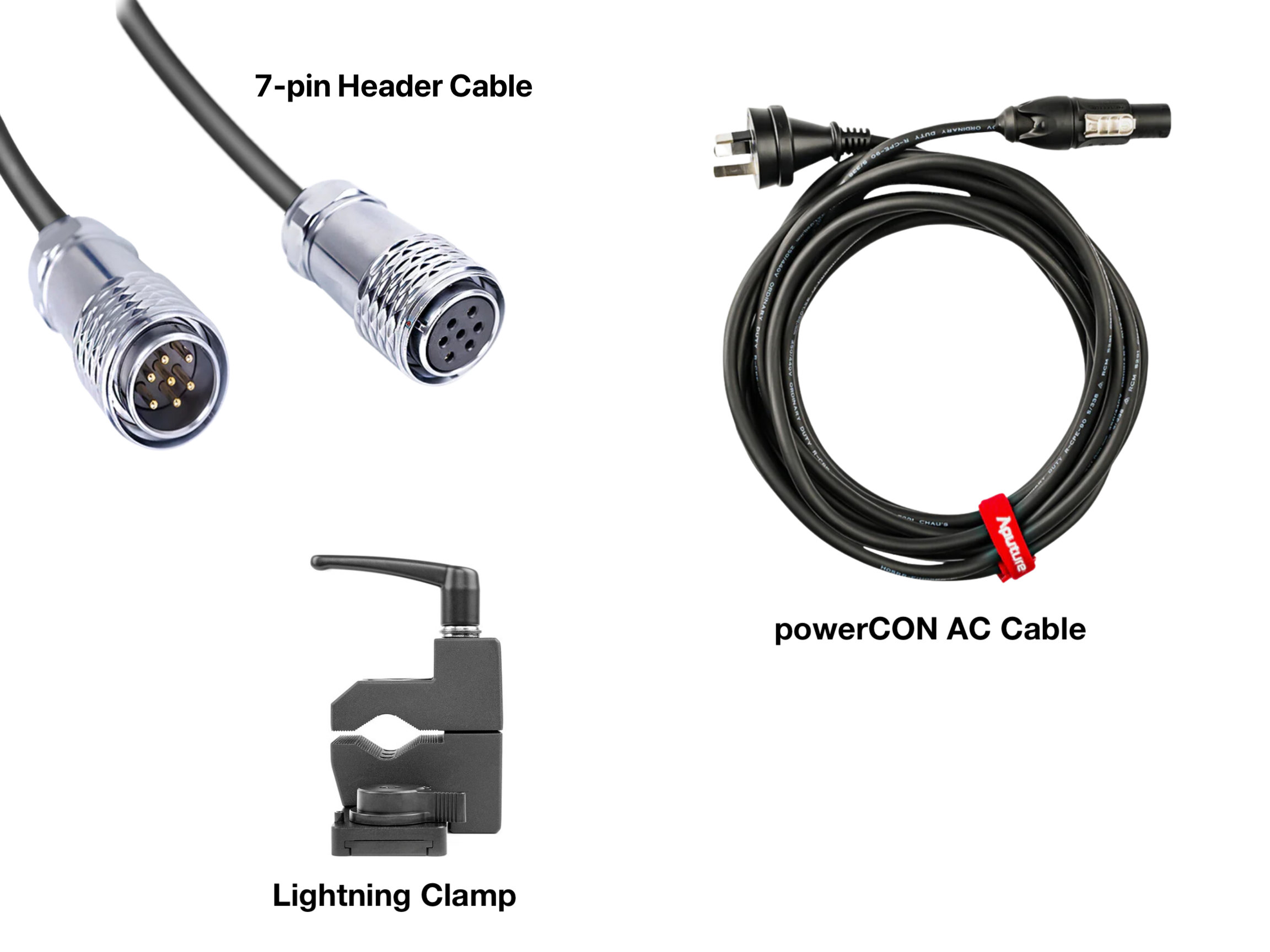

You can attach the control box the light stand using the Lightning clamp.
- Clamp the Lightning Clamp onto a light stand.

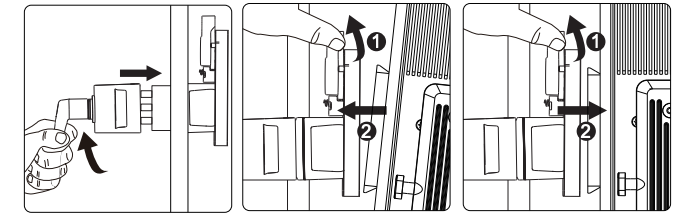

- Rotate the release lever to unlock the quick-release baseplate(1)
- Mount the control box onto the Lightning Clamp (2) (the release lever will automatically spring back).
- To remove the control box, grasp it firmly, then unlock the quick-release plate by turning the release lever, and detach the control box.
Operations & Effects
- Intensity

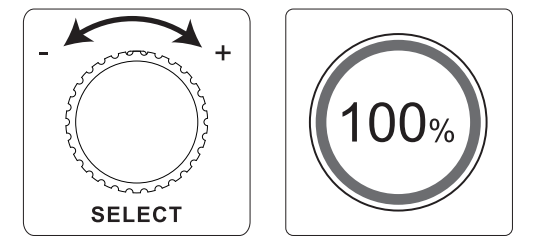

- Use the Select knob on the control box to adjust brightness by twisting left or right .
- Use the Select knob on the control box to adjust brightness by twisting left or right .
- Effects
- Press the menu button on the control box to enter the system menu.
- Turn the knob to scroll to Effects Mode.
- Press the knob into select
In Effects Mode, you can pick an effect and adjust its
Intensity and Frequency by using the control knob.
Troubleshooting
Q: Does this light get hot?
A: Yes. Even though it is LED, it gets very hot. Always wear gloves and let the light cool before packing it away.
Q: Can I use this in the rain?
A: Do not use it in the rain.
Q: I plugged a 1200D in and it shut off, along with the other lights in the room.
A: You have over loaded your location's circuit. This light requires 15 Amps of power. Unplug the 1200D and check your breaker box. Always use a 20 Amp circuit with the 1200d and do not plug in more items that will overload your circuit.
Q: Which reflector should I use?

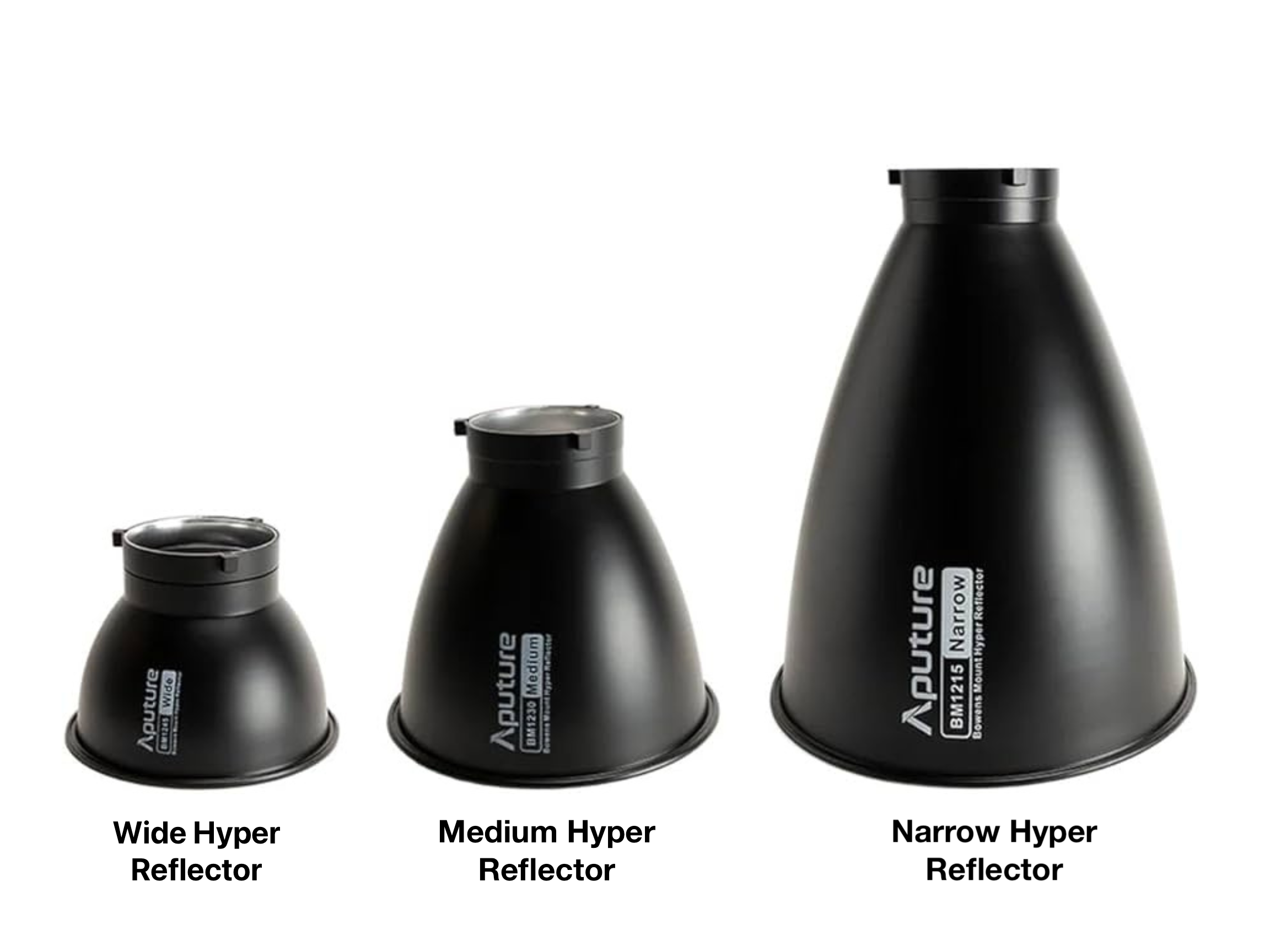

A: If you want to spread out the light, use the Wide reflector. For a more spotlight beam, use the Narrow Reflector. For something in between, use the Medium Reflector.
Tips & Tricks
- This light is the LED equivalent of a 1200W HMI. And although it is LED - it still gets VERY HOT. Use with gloves and let it cool before packing away.
- If you want to use a diffusion - pick a larger diffusion and set up on a stand in front of the light. Keep it ~ 3ft away from the light to prevent burning the diffusion.
- If you want to stem the light up high - use a 2-rise or 3-rise combo stand instead of a husky baby or c-stand.
