Overview
If you have digitized with us recently in Post Production, you'll know that we have made changes to our suggested digitization workflows in order to maintain compatibility with our operating system and software.
Our new Elgato Video Capture Workflow is easier than before and faster than ever. Thanks to our new Video Capture Hardware, we can also scan the entire un-cropped frame for the first time in our labs.
Tapes digitized using this workflow will be 640x480, 29.97 fps, with stereo audio. Standard Definition is typical for VHS tapes.
Equipment
You will need to check out the following items from the DPL Annex (Ansin 810):
- DPL1-10 (our digitizing station in 809 includes a DV/HDV deck)
- If unavailable, you may reserve any computer and check out our floating DV deck
- Video Capture Device_01
We advise reserving all the equipment you will need in order to guarantee that it is available upon arrival.
Set Up
If you are working at the Digitization Station in DPL1, you'll see find RCA cables (yellow, white, and red) next to the DV deck.

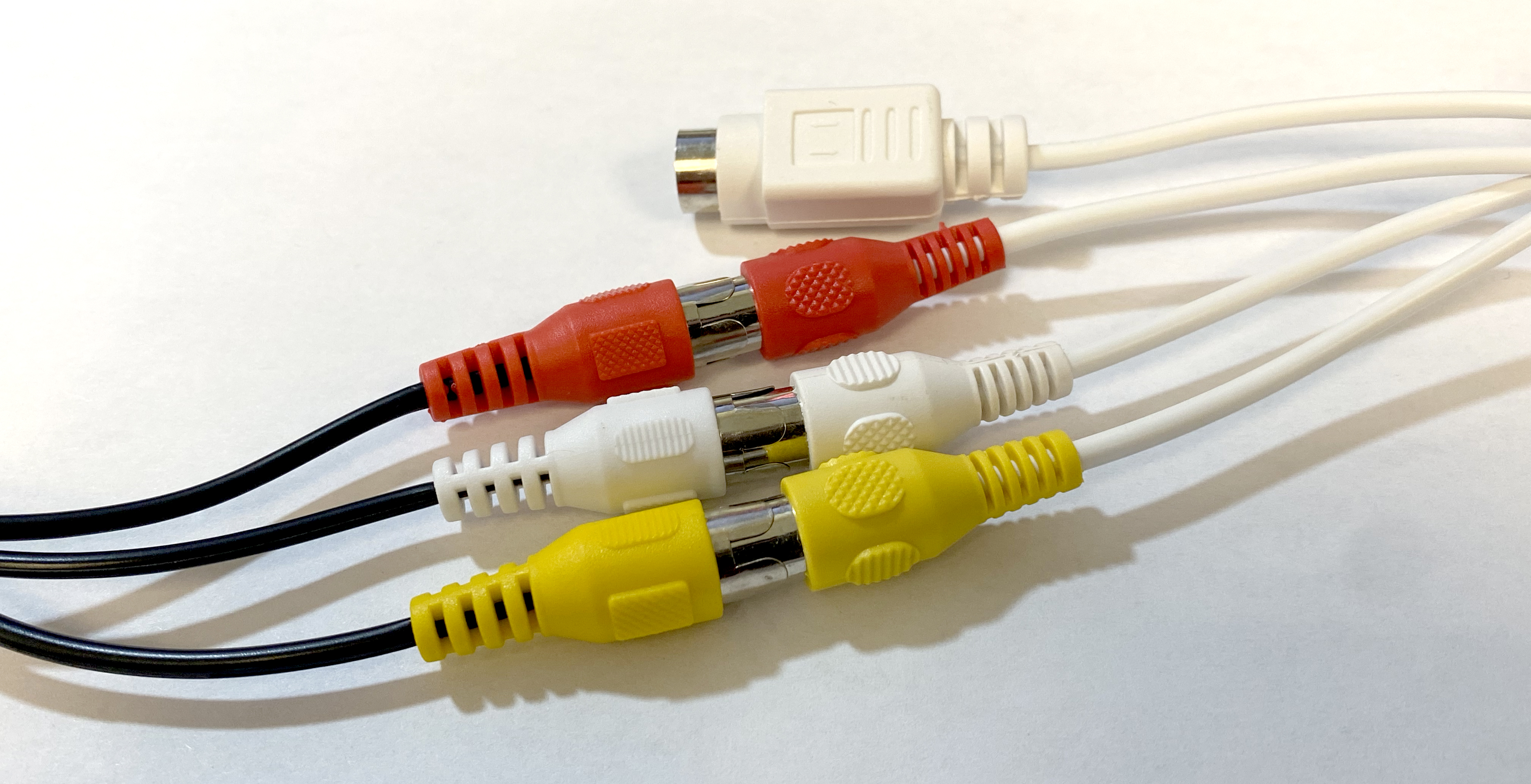

Plug these loose ends into the corresponding colored inputs on the Video Capture Device. Ignore the 4th input on the Capture Device.
Turn on the DV deck using the switch on front. If desired, turn on the preview monitor (optional).
Insert your tape into the DV deck.
Plug the USB end of the Video Capture Device into an open USB port.
Elgato Video Capture

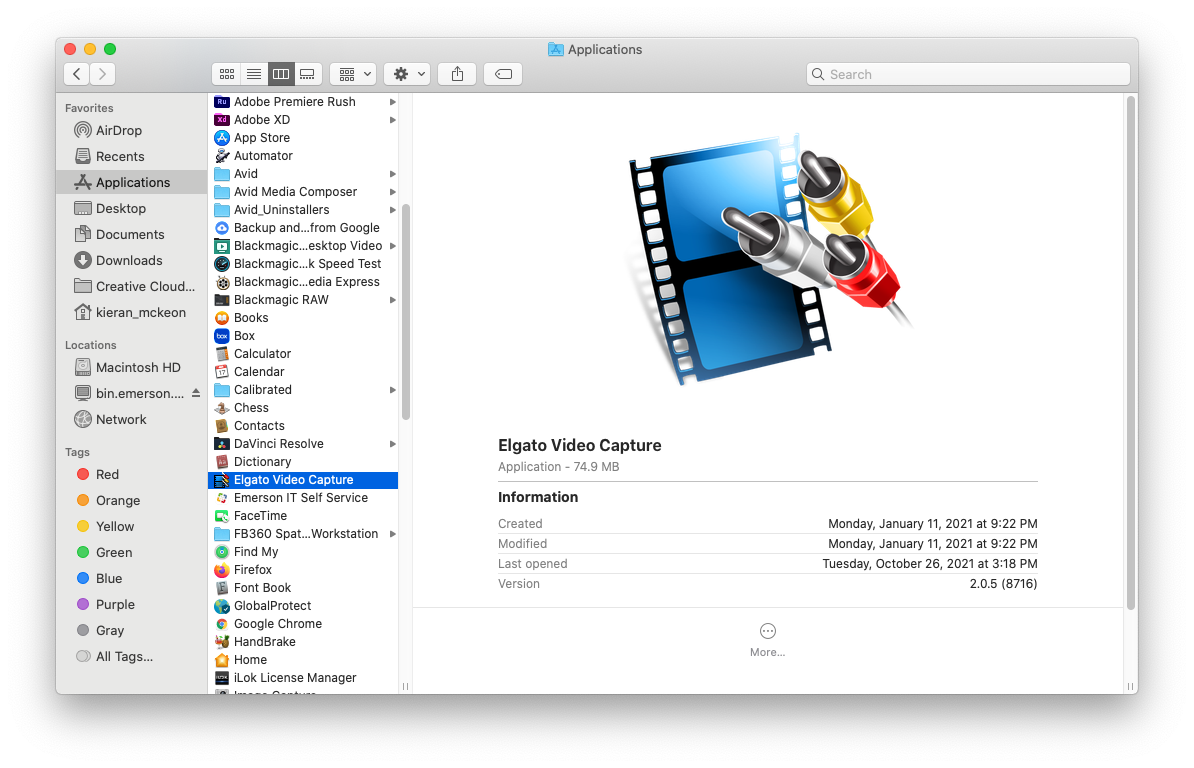

On your computer, open the Elgato Video Capture application.

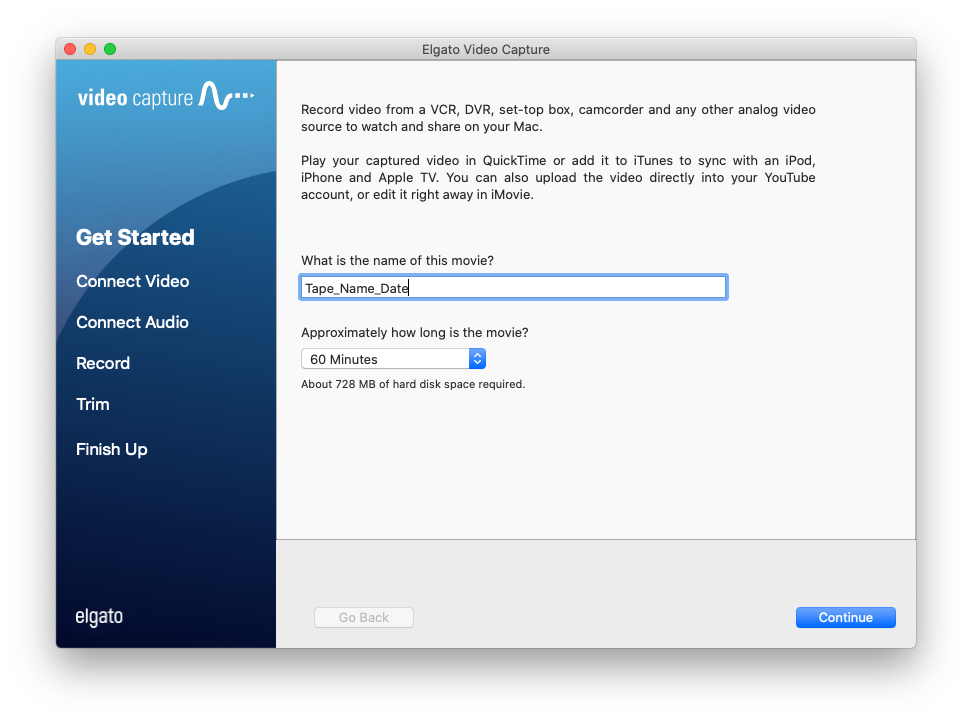

Get Started
Name your recording - this will become the name of your final file.
Estimate the length of your tape. We suggest over-estimating if you are unsure.
Click Continue.

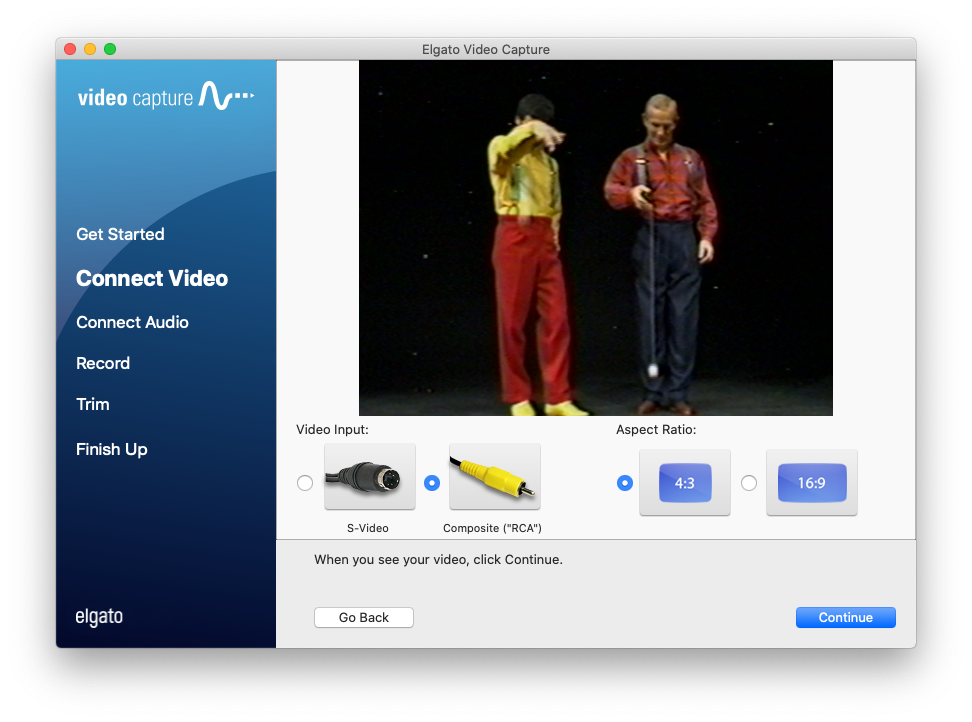

Connect Video
If you have not sone so already, turn on the VHS player and insert your tape. Control the playback using the buttons on the device.
Select the video input: Composite ("RCA")
Select your Aspect Ratio - experiment with both settings if you are unsure
You should see your tape playing the in preview. If not, double check that all cables are securely connected and plugged into the correct inputs/outputs.
Click Continue.

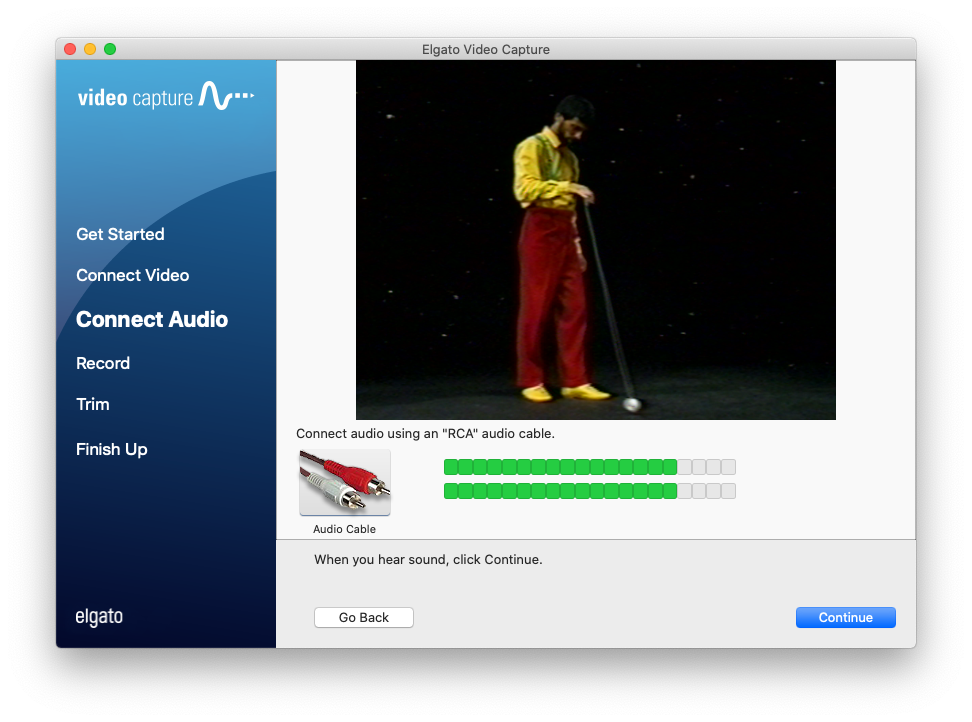

Connect Audio
Check that the software is registering Audio Levels - displayed as green bars below. The computer will also play your tape's audio if you have headphones.
If you see levels, click Continue.

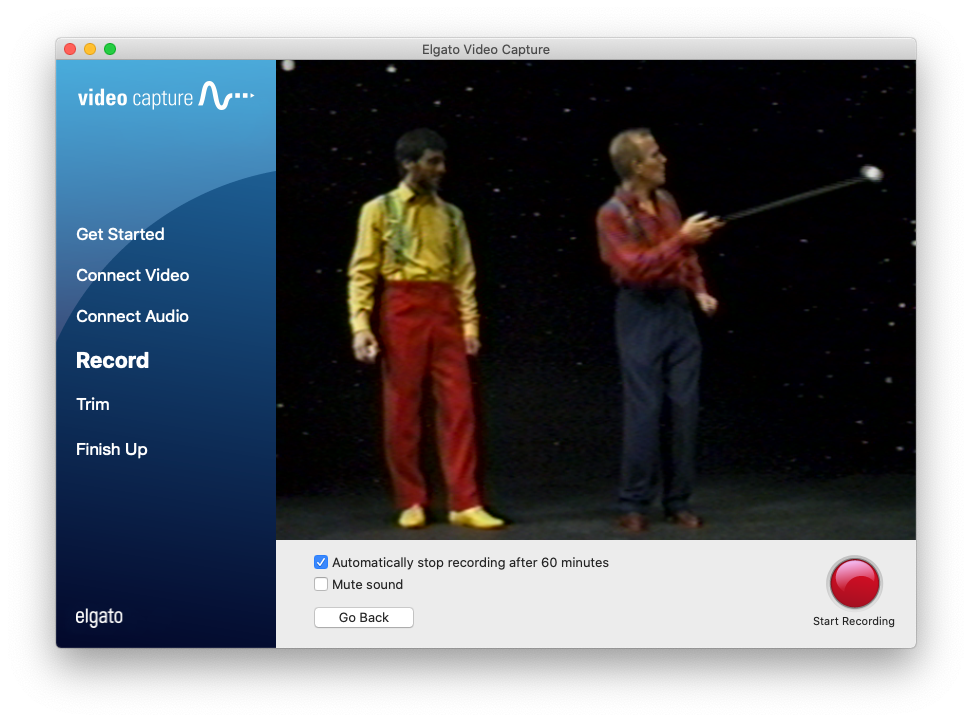

Record
Decide whether or not the software should stop recording automatically after the estimated length you set in the beginning. This is checked on by default.
Make sure "Mute sound" is unchecked
We are now ready to start recording! Rewind your tape to the beginning using the controls on the VHS deck. Hit stop to pause until you are ready to being recording.
When you are ready, hit "Start Recording" in the Elgato Video Capture Software then press play on the VHS deck.

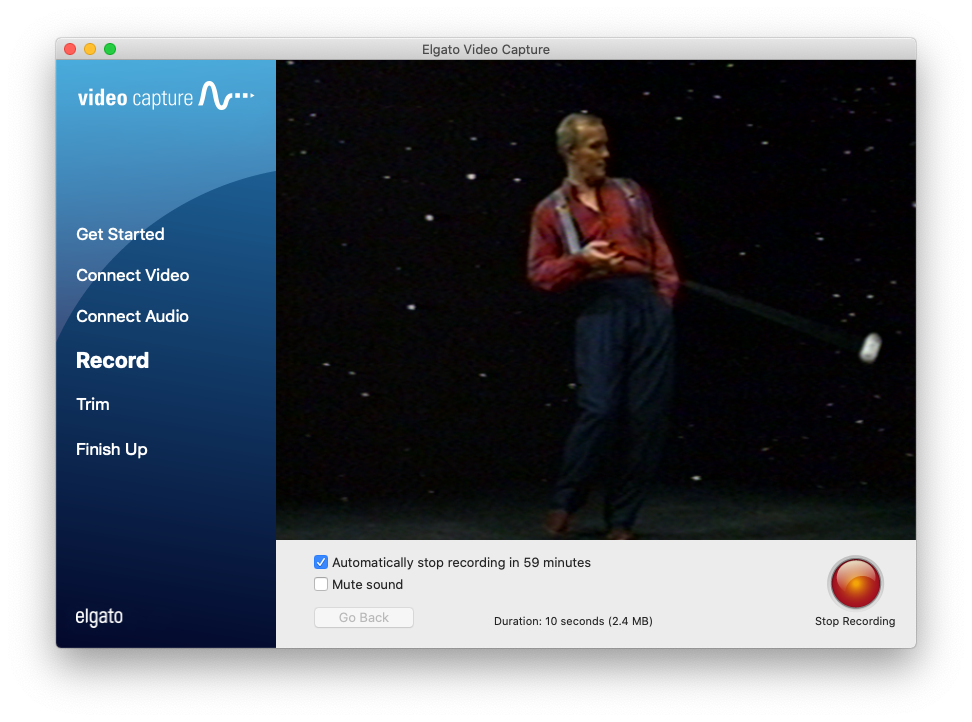

The duration of your recording will appear on screen.
When you are finished, hit "Stop Recording"

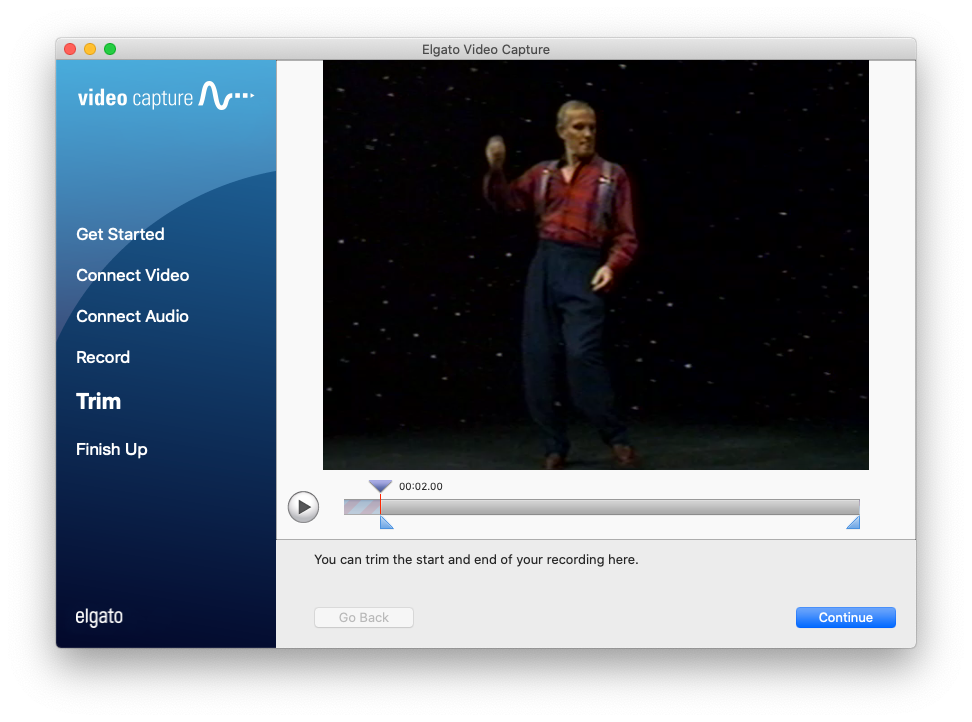

Trim
The trim step is optional.
Here we have the ability to watch our digital file. We can also trim off the beginning or end of our recording if there is some extra content we don't want included in the file.
Trimming (optional) is done by dragging the blue handles below the silver "timeline"
Click Continue

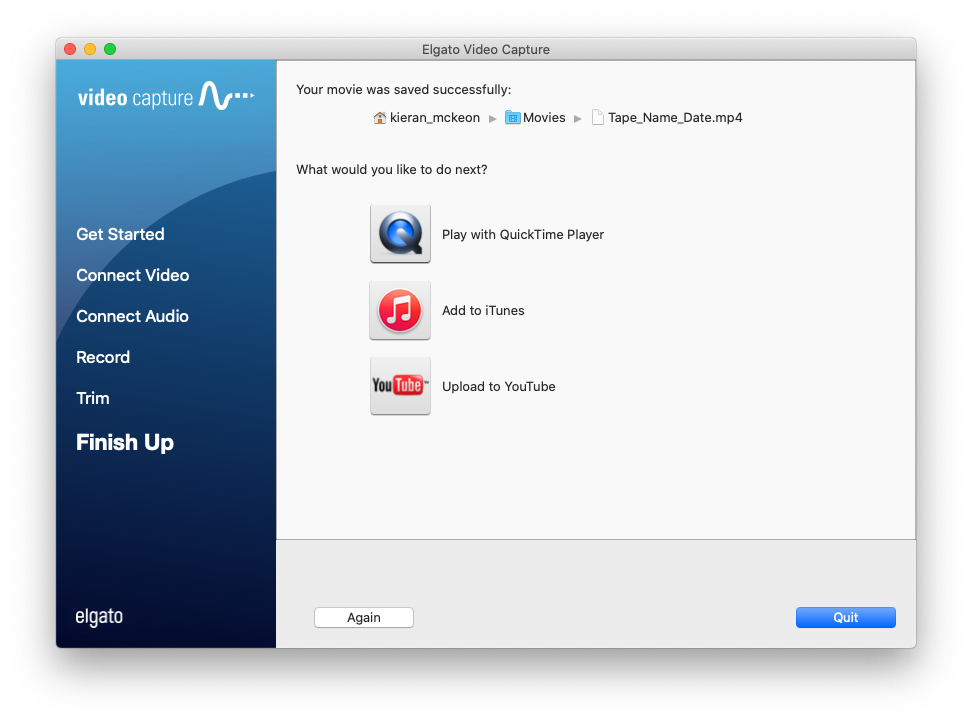

Finish Up
Almost done!
Your file was already saved to the location shown in this window - most likely your "Movies" folder.
Click on the file name in the Elgato window to open the file location in a Finder window.
In Finder - Copy your file to an external hard drive, online storage (Box or Google Drive), or the server for safe keeping! The lab computers are wiped every night.
'Quit' if you are finished or select 'Again' if you have more tapes to digitize!
Don't forget to take your tape out of the VHS deck!
